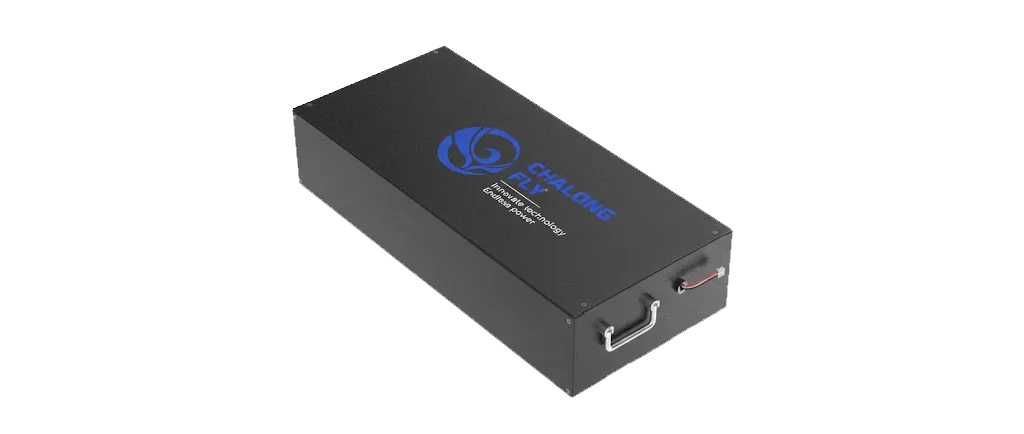

192V 6Ah LiFePO4 UPS Battery
(3U Rack Module / 8kVA Backup)
Configured as a 192V 6Ah LiFePO4 battery pack in a 3U rack-mount format, this model is presented for compatible high-voltage UPS applications up to 8kVA. Confirm the target system’s DC bus, charging profile, BMS interface, connector and mechanical fit before selection.
High Voltage Series (Short Backup)
This 192V battery pack is intended for compatible 3U built-in high-voltage UPS applications. Confirm the UPS DC bus, charging profile, BMS interface, connector and installation envelope against the specific system before ordering.
- Ultra-High-Rate Discharge: Supports up to 7C discharge rates to manage severe loads.
- Intelligent BMS: Protection functions include overcharge, over-discharge, over-temperature, over-current and short-circuit protection; confirm thresholds and interface behavior for the final configuration.
- Form Factor Efficiency: The volume and weight are about 1/3 to 2/3 of comparable lead-acid battery banks.
- Extended Longevity: Service life depends on the final configuration, charge settings, operating temperature and duty cycle. Confirm expected service-life requirements for the intended application.
Typical applications include:
- Enterprise UPS systems ≤ 8 kVA
- Server rooms / data centers
- Telecom & network equipment
- Industrial control systems

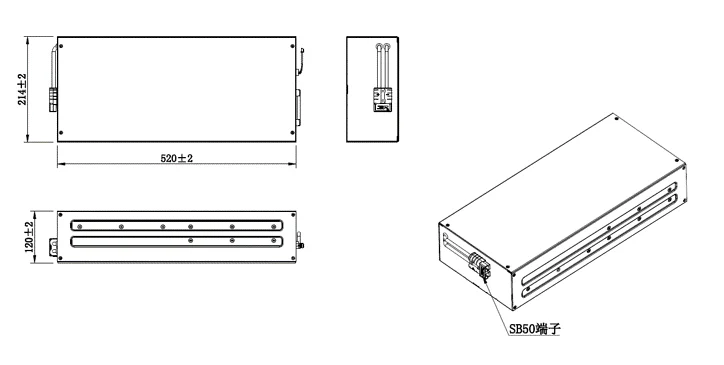

Mechanical Dimensions (L×W×H): 520 × 214 × 120 mm
| Electrical Specifications | |
|---|---|
| Nominal Voltage | 192V |
| Nominal Capacity | 6Ah |
| Power | 1152Wh |
| Internal Resistance | ≤ 530 mΩ |
| Self-discharge | Less than 1% per month |
| Adaptable for UPS | ≤ 8KVA |
| Discharge Specifications | |
|---|---|
| Backup Time | Depends on UPS load, efficiency and operating conditions; request a system-specific estimate. |
| Maximum Continuous Discharge Current | 42A |
| Over-discharge Protection Voltage | 150V |
| Under-voltage Recovery Voltage | 162V |
| Short-circuit Protection | Available |
| Communication & Compliance | |
|---|---|
| Communication Method | RS485/RS232 |
| Applicable standards & documentation | Confirm scope for the final configuration and destination market; request applicable records. |
| Mechanical Specifications | |
|---|---|
| Cell | IFR26650-3000mAh |
| Number of Battery Strings | 60S2P |
| Dimensions (L×W×H) | 520 × 214 × 120 mm |
| Weight | 17.5 Kg |
| Output Terminals | Anderson SB50 |
| Shell Material | SPCC |
| IP Rating | IP21 |
| Charge Specifications | |
|---|---|
| Charge Current | 6A |
| Charge Voltage | 216V |
| Overcharge Protection Voltage | 216V |
| Over-voltage Recovery Voltage | 213V |
| Balanced Start Voltage | 204V |
| Temperature Specifications | |
|---|---|
| Discharge Temperature | -20 to 60°C |
| Charge Temperature | 0 to 45°C |
| Storage Temperature | -5 to 45°C |
| BMS Overtemperature Protection | 65 ± 5°C |
| BMS Overtemperature Protection Recovery | 55 ± 5°C |
UPS battery selection & project planning
192V 6Ah LiFePO4 UPS battery in a 3U format for 8kVA-class systems
This page presents a 192V, 6Ah (1,152Wh) LiFePO4 pack in a 3U enclosure for UPS systems up to 8kVA. The listed 60S2P configuration, 42A maximum continuous current, 150V protection cutoff and 162V recovery value distinguish its high-voltage system interface from lower-voltage products.
UPS compatibility and replacement checks
How to interpret this configuration
Compatibility begins with the UPS DC battery bus and charge profile. Compare the required continuous current with the listed 42A limit, and verify cutoff behavior, BMS communication, connection method and mechanical fit against the target 192V UPS documentation.
Typical system context: The 3U, 192V configuration is differentiated for compatible high-voltage UPS platforms in enterprise server/network rooms and critical control installations where the system is designed for a 192V battery bus. The page’s 8kVA class is not sufficient to establish fit; confirm the UPS model and current window.
Interface and installation details to confirm
- Cell configuration listed: 60S2P; communication: RS485/RS232; output terminals: Anderson SB50.
- The 3U enclosure is listed at 520 × 214 × 120 mm, with a 17.5kg listed weight and IP21 rating.
- The page lists 150V over-discharge protection and 162V recovery; confirm these values for the quoted configuration and UPS.
LiFePO4 retrofit checklist
- Confirm a 192V DC battery architecture and LiFePO4-compatible charge profile.
- Check the required current against 42A maximum continuous and establish any transient requirement.
- Verify the listed 150V cutoff / 162V recovery and RS232/RS485 protocol/pinout.
- Measure the 3U envelope, mounting, connector clearance and cable access before approving the retrofit.
Runtime planning and OEM/ODM project intake
Plan from the actual UPS load
No fixed runtime is stated for this configuration. Estimate runtime from the actual UPS load curve and usable energy after losses and cutoffs; do not derive a guaranteed duration from the 1,152Wh nominal listing alone. Provide UPS model, load in watts, battery bus/cutoff and required ride-through time for a project-specific discussion.
What to include in a quotation request
Include UPS make/model, nominal battery bus and charge/cutoff window, measured load, current profile, required runtime, SB50 details, RS232/RS485 protocol, 3U space and quantity.
For OEM/ODM projects, supply the UPS model, bus and charge limits, 3U rack drawing, current profile, SB50 wiring, communication protocol and quantity. Pack/BMS and mechanical details can then be aligned with the project; the page does not promise universal compatibility or a fixed runtime.
