Medical Cart &
Workstation Power Solutions

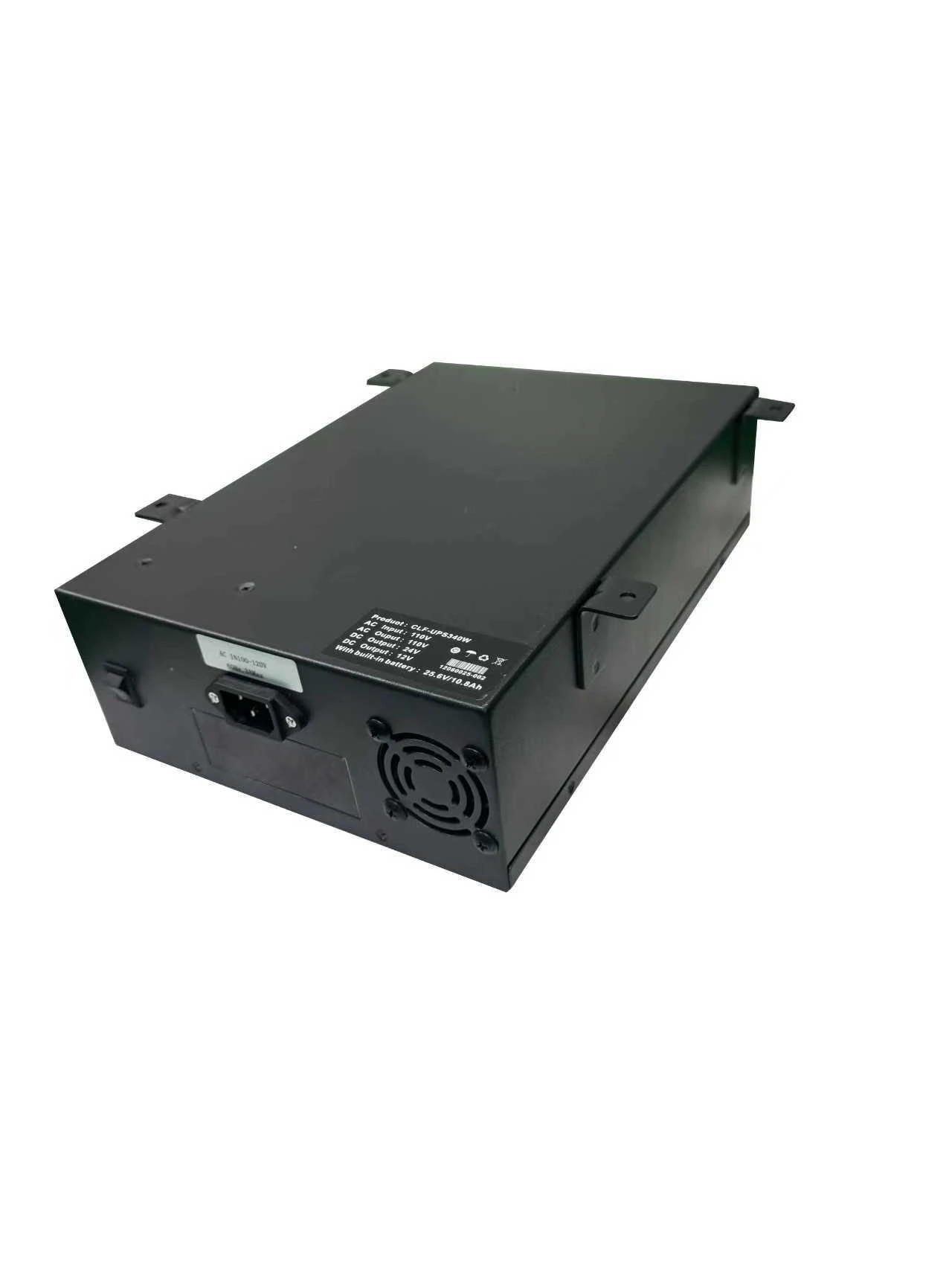

CLF-UPS340W LiFePO4 UPS Power System for Medical Carts
Empower Your Medical Workstations. The CLF-UPS340W shown here is our current 300W-class reference configuration for medical carts and mobile workstations. The displayed specifications describe the reference unit shown on this page. For OEM/ODM projects, voltage, capacity, enclosure dimensions, mounting, connectors, charging and output interfaces, and communication options can be adapted to the cart design and system requirements.
Reliable Mobile Power for Medical Carts & WOWs
- UPS Function: Supports battery-power continuity when the cart is unplugged from the wall. Actual transfer behavior depends on the system configuration and load.
- LiFePO4 Chemistry: Built with 8S Lithium Iron Phosphate cells; safety behavior depends on the complete battery design, BMS, operating conditions and validation.
- Smart Cooling: Fan control is designed to manage cooling according to load and temperature; operating behavior depends on the system configuration.
- Rugged Design: Black anodized metal housing supports routine surface cleaning and maintenance.
Technical Specifications
Reference configuration: The specifications below describe the CLF-UPS340W unit shown on this page. Project configurations can be adapted according to application, runtime, mechanical and interface requirements.
| Electrical Parameters | |
|---|---|
| Battery Chemistry | LiFePO4 (8S) |
| Specification | 25.6V / 10.8Ah (~276Wh) |

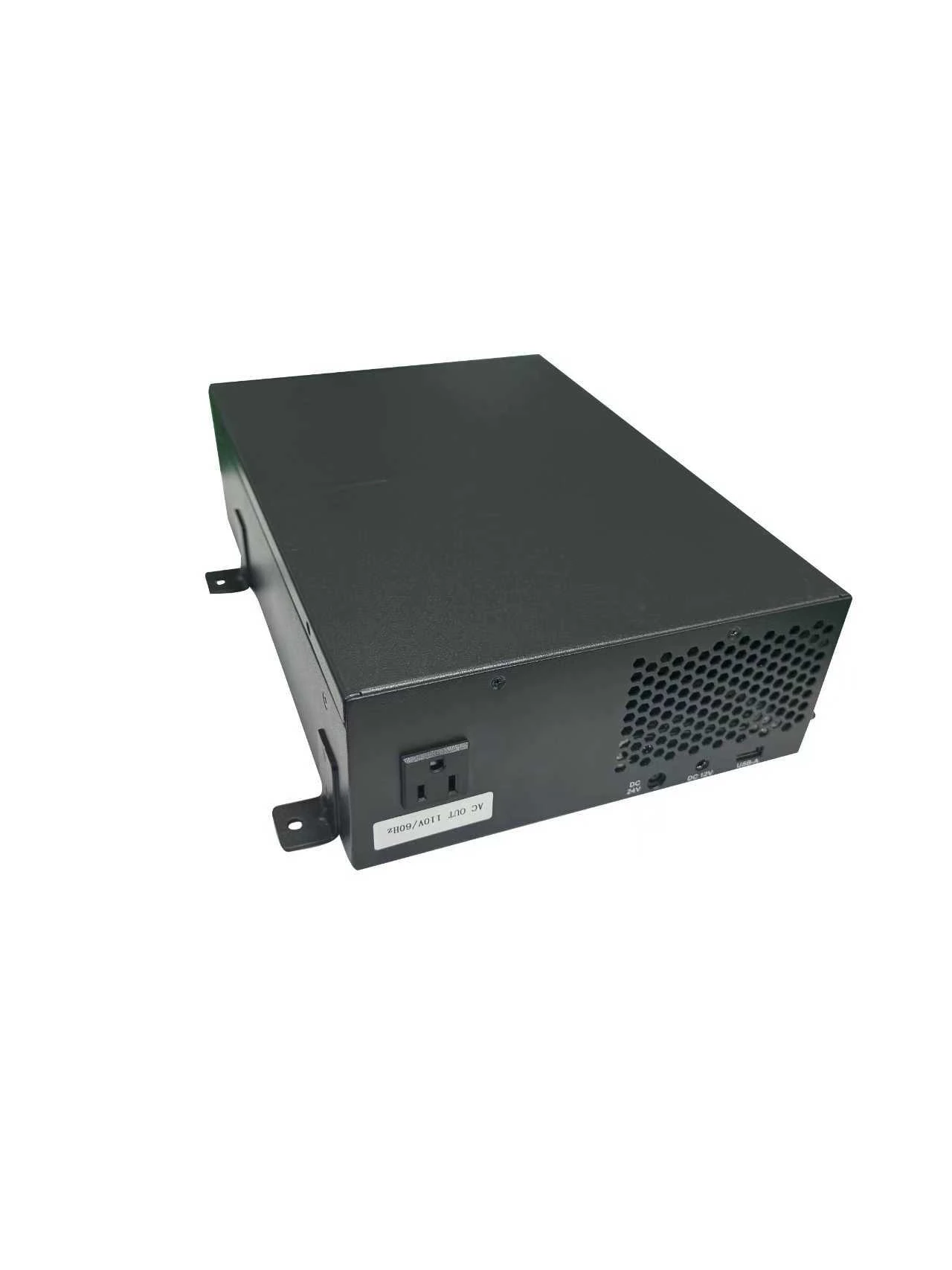

| AC Output | 110V / 60Hz (Pure Sine Wave, 300W) |
| UPS Switching Time | ≤ 10ms (Reference unit specification) |
| Interfaces & Protection | |
|---|---|
| DC Output 1 | 24V / 1.25A (30W) DC7450 |
| DC Output 2 | 12V / 2A (24W) DC5525 |
| Dimensions | 312 × 218 × 90 mm |
| Protections | Integrated BMS (Overcharge/Temp) |
Custom Medical Power Solutions (OEM/ODM)
Not Just Standard Products – We Build What You Need. The CLF-UPS340W is our current 300W-class reference configuration. For OEM/ODM projects, we can adapt the battery and power system to the required runtime, available installation space, electrical architecture and interface requirements.
- Voltage, Capacity & Energy: Configure the battery voltage, capacity and energy around the required runtime and load.
- Enclosure & Mounting: Adapt the enclosure dimensions and mounting method to the available battery space and cart design.
- Connectors, Charging & Outputs: Specify connectors, charger/charging input and the AC/DC output arrangement for the system architecture.
- Communication Interfaces: Evaluate SMBus, CANBus and Bluetooth options when required by the integration.
Mobile Workstation Power Solution
The Challenge: Nurses often struggle with heavy carts powered by aging lead-acid batteries that die mid-shift. Unplugging can interrupt power to the AIO PC and connected equipment, which may disrupt mobile workflows.
The CLF Solution: We provide a LiFePO4 UPS power system (reference model: CLF-UPS340W) with AC/DC output options that can be adapted to the cart and system requirements.
The Result: A properly configured system can support mobile workstation use; final performance depends on the cart, load, runtime and installation requirements.
Mobile Medical Power FAQs
Why is LiFePO4 considered for medical use?
Does it support UPS functionality?
Can you customize the battery to fit our cart's holster?
Is the fan noise disruptive in quiet hospital wards?
How long is the service life compared to lead-acid?
