Marine Battery
Storage Solutions
High-performance LiFePO4 power for yachts, electric boats, and commercial marine applications.

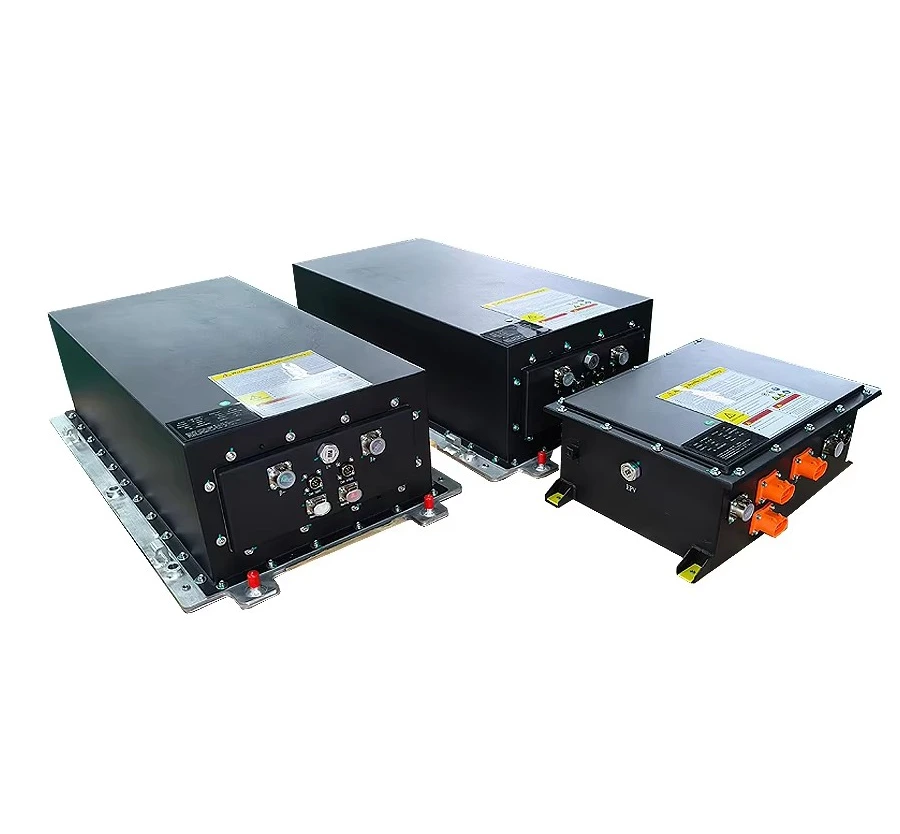

51.2V 280Ah High Voltage Marine LiFePO4 Battery Module
Scalable high-voltage marine energy storage system (96V-600V). IP67 waterproof, with project-specific documentation requirements reviewed for the final configuration, and designed for heavy-duty electric propulsion. This modular 14.3kWh unit is a high-voltage module option for electric marine vessel projects.
The Ultimate Power Solution for Electric Marine Vessels
The CLF 51.2V 280Ah Marine Battery Module is a professional-grade energy storage unit designed for high-voltage series connection. Designed for marine applications, this system supports scalable battery-bank planning from 96V to 600V DC; applicable classification requirements should be confirmed for the final project configuration.
Unlike standard batteries, this 14.3kWh module features a heavy-duty, IP67 waterproof enclosure and advanced thermal management, making it ideal for the harsh environments of electric ferries, yachts, and commercial workboats.
Request a Professional System Design
Building a high-voltage system requires precise engineering. We offer Free Consultation for your project. Click "Get a Quote" to regarding:
- Custom Voltage Configuration (e.g., 350V, 500V)
- BMS Topology & HV Box Selection
- Installation Space Assessment
Technical Specifications
| Electrical & Performance | |
|---|---|
| Model | CLF-51280-HV (Marine Series) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 280Ah |
| Total Energy | 14.33 kWh per module |
| Series Scalability | Supports up to 600V DC (10-12 Modules) |
| Max. Discharge Current | 280A (1C) Continuous |
| Cycle Life | ≥ 6,000 Cycles @ 80% DOD |
| Mechanical & Environmental | |
|---|---|
| Dimensions | 870 × 500 × 242 mm |
| Weight | Approx. 110 kg |
| IP Rating | IP67 (Waterproof) |
| Cooling Method | Natural / Liquid Cooling (Optional) |
| Documentation / requirements | DNV, CE, UN38.3 and MSDS records, as applicable to the final configuration |
| Warranty | 3 Years (Extendable to 5) |
Key Advantages of the Marine Module
- High Voltage Scalability: Specifically designed for series connection. Easily build 300V+ systems for powerful electric propulsion motors.
- Marine documentation review: Applicable classification and safety documentation should be confirmed for the final vessel and battery configuration.
- IP67 Waterproof Protection: Fully sealed metal housing protects internal cells from saltwater spray, humidity, and dust.
- Long-Term Value: Powered by Tier-1 Prismatic LiFePO4 cells; the stated module specification is at least 6,000 cycles at 80% depth of discharge, while service life depends on operating conditions.
- Smart Master-Slave BMS: Supports CAN Bus / RS485 communication for real-time monitoring of every single cell in the high-voltage string.
Technical Brief: 400V Electric Ferry Retrofit
The Engineering Challenge
Example design scenario: a commercial ferry powertrain may be evaluated around a stable 400V DC bus for a 150kW electric propulsion motor. Final electrical and installation requirements depend on the vessel project.
The CLF Solution & Results
An example configuration uses 8 CLF-51280 modules connected in series to calculate approximately 409.6V and 114.7kWh. The final pack design, installation space and performance should be confirmed for the vessel project.
✓ Space planning: The final footprint depends on vessel layout and installation requirements.
✓ Operating duration: Actual runtime depends on vessel load, duty cycle, conditions and battery configuration.
✓ Project review: Emissions and regulatory outcomes depend on the complete propulsion system and applicable local requirements.
Marine FAQs & Custom Solutions
Can I replace my diesel engine with your battery system?
Why choose Chalong Fly LiFePO4 over lead-acid or AGM for marine use?
What does "DNV Standard" mean for my project?
Can you customize a battery pack for my specific marine requirements?
Do you only make high-voltage marine batteries?
What is the lead time for custom marine battery orders?
