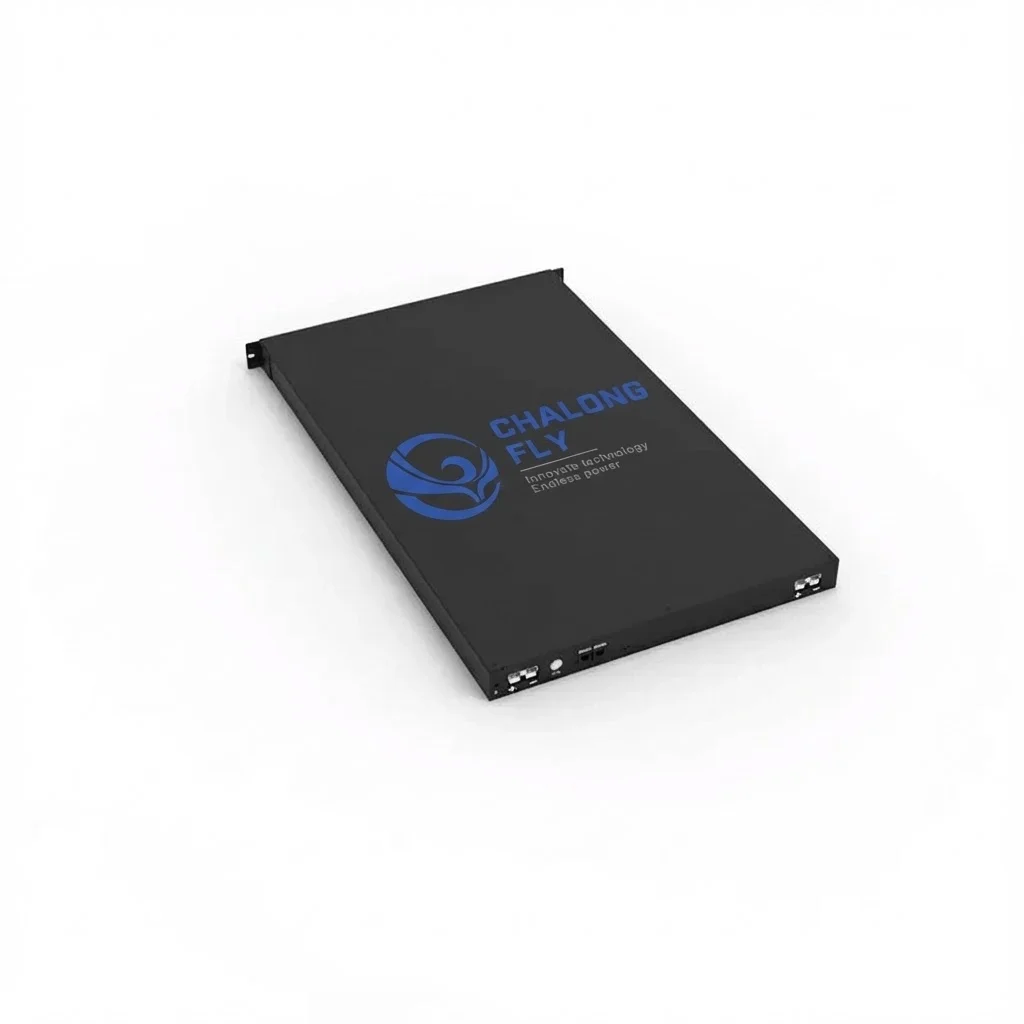

192V 6Ah LiFePO4 UPS Battery
(1U Rack-Mounted / 1-10kVA)
Suitable for rack-mounted UPS systems in the 1–10kVA range when the UPS specifies a compatible 192V DC bus. Confirm the charging profile, current limits, connector, dimensions and BMS/communication interface for the selected configuration. The 1U module offers high-rate discharge and parallel-expansion options; application fit should be verified before ordering.
Featuring a standard 19-inch 1U rack structure, this battery incorporates a UPS-specific Battery Management System (BMS). Confirm the UPS DC bus, charging profile, current limits, connector, rack dimensions and communication interface before selection.
- Rack Fit & Interface: Check the 19-inch 1U mounting dimensions and confirm the UPS charging, DC-bus, connector and BMS requirements before replacing or expanding a battery bank.
- High-Rate Discharge: The applicable continuous and pulse-current limits depend on the selected configuration and UPS duty; confirm these values for the intended load and operating conditions.

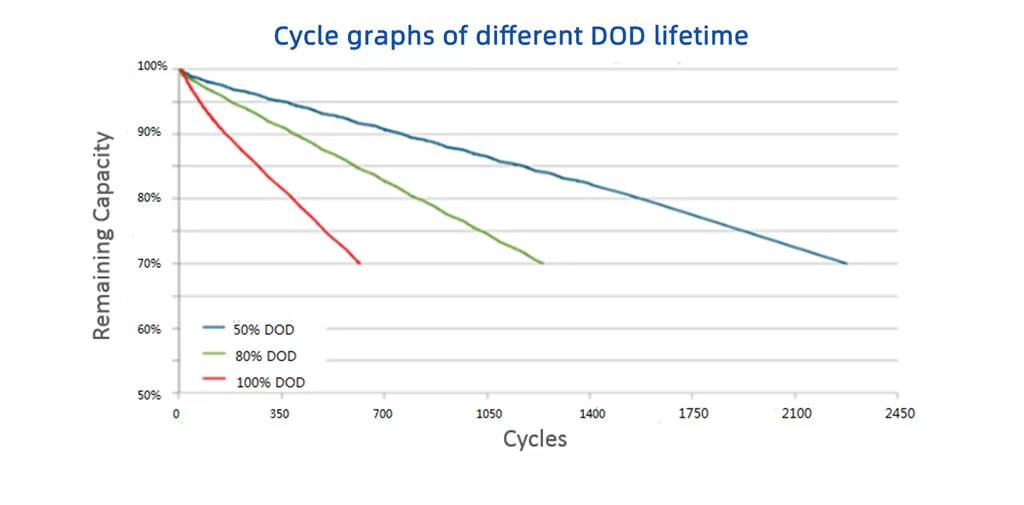

- Installation & Service Life: Compare the documented rack dimensions and weight with the existing battery bank. Service life depends on operating temperature, depth of discharge, charging conditions and duty cycle.
- High Safety: BMS features multiple protections (overcharge, over-discharge, over-temperature, over-current, short-circuit).
This 192V LiFePO4 UPS battery is suitable for rack-mounted UPS systems in applications where stable and reliable backup power is required.
Typical use cases include:
- Data centers and enterprise server rooms
- Telecom and network facilities
- Financial institutions
- Medical equipment systems
- Security, monitoring infrastructure, and other critical power environments
Project testing scope and acceptance criteria can be aligned with the target UPS, operating profile and applicable market requirements; confirm the scope for the selected configuration.
| Electrical Specifications | |
|---|---|
| Nominal Voltage | 192V |
| Battery Capacity | 6Ah |
| Operating Voltage | 150V~216V |
| Cell Material | LiFePO4 — high-rate specification; confirm applicable discharge rating for the selected configuration |
| Design Life | Application-dependent; confirm the target duty cycle and operating conditions |
| Discharge & Charge Specifications | |
|---|---|
| Maximum Charge Current | 6A |

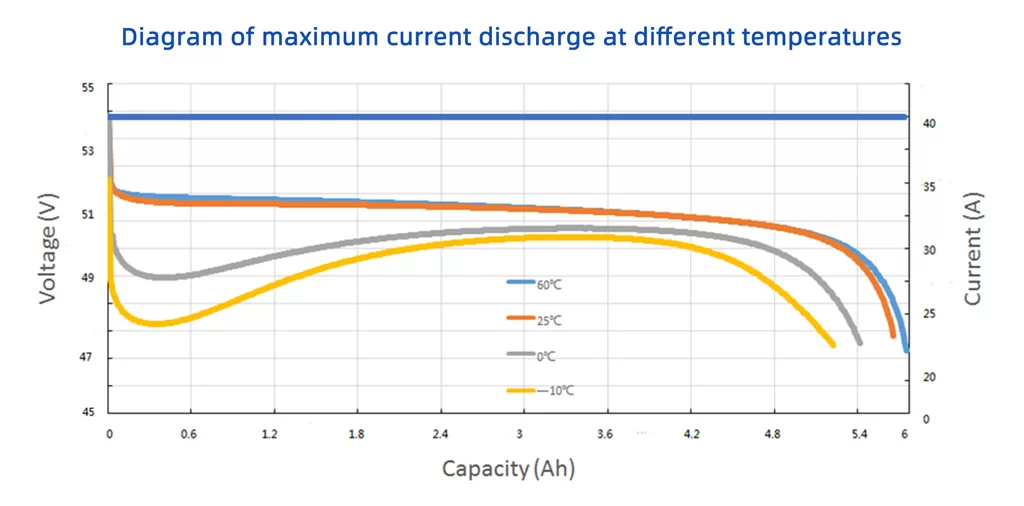

| Max Continuous Discharge Current | 45A |
| Max Instantaneous Discharge Current | 60A@5S |
| Support Parallel Connection | Up to 8 modules |
| Mechanical & Environmental Specifications | |
|---|---|
| Dimensions (L*W*H) | 438*730*44mm (1U Rack) |
| Weight | 16 Kg |
| Protection Rating | IP21 |
| Charging Temperature Range | 0~45°C |
| Discharging Temperature Range | -20~60°C |
| Communication & Compliance | |
|---|---|
| Communication Interface | RS485, CAN |
| Compliance Standards | UL1973, IEC62619, UN38.3 |
UPS battery selection & project planning
192V 6Ah LiFePO4 UPS battery in a 1U rack format
This 1U page describes a 192V, 6Ah LiFePO4 UPS module with a listed 150–216V operating window, 6A maximum charge current, 45A continuous discharge and 60A for 5 seconds. The 438 × 730 × 44 mm, 16kg enclosure and RS485/CAN interface distinguish it from the separate 3U 192V model.
UPS compatibility and replacement checks
How to interpret this configuration
The page lists a 1–10kVA system range, but that range is not a universal compatibility claim. Verify the UPS’s 192V battery bus, operating window, charge-current limit, sustained/pulse demand, BMS communication and rack fit for the actual model.
Typical system context: This listing is the 1U option for a compatible 192V UPS bus where vertical rack space is constrained and the 1U mounting envelope suits the cabinet. It is not interchangeable with the separate 3U/8kVA page merely because both list 192V and 6Ah; compare current limits, connector, communication and enclosure dimensions.
Interface and installation details to confirm
- 1U envelope listed: 438 × 730 × 44 mm; weight: 16kg; protection rating: IP21.
- The page lists RS485 and CAN. Confirm protocol, pinout and supported data with the target UPS controller.
- Maximum charge current is listed as 6A; discharge is listed as 45A continuous and 60A for 5 seconds. Confirm allowed limits and duration for the quoted build.
LiFePO4 retrofit checklist
- Verify 192V bus and 150–216V operating window against the UPS manual.
- Check 6A charging limit, 45A continuous demand and the 60A/5-second pulse requirement.
- Confirm RS485 or CAN protocol/pinout and BMS integration with the actual UPS.
- Check 1U rails, 438 × 730 × 44 mm clearance, 16kg support, cable bend and connector access.
Runtime planning and OEM/ODM project intake
Plan from the actual UPS load
The page does not specify a fixed backup duration. Runtime must be assessed against the UPS load, efficiency, cutoff, battery condition, temperature and selected operating profile. Share the UPS model, measured load and target hold-up time rather than estimating from the 6Ah label.
What to include in a quotation request
Send UPS model, 192V bus and voltage window, max charge current, measured load/current peaks, runtime target, rack drawing, RS485/CAN protocol, quantity and installation market.
For a B2B build discussion, provide the target 1U rack drawing, UPS bus/charge limits, continuous and pulse current, protocol, connector/harness, label and quantity. BMS, mechanical and wiring details can be coordinated for the specified project; confirm that any parallel configuration is supported by both the UPS and battery design.
