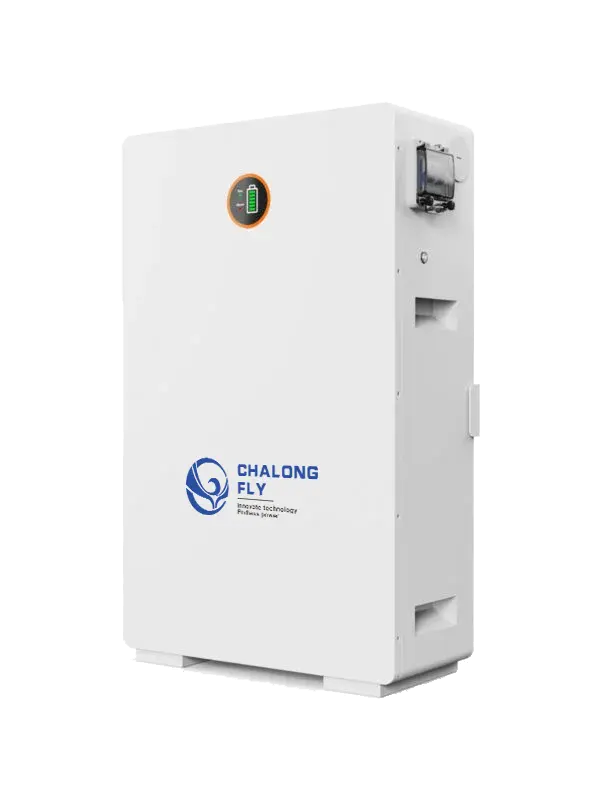

CF-SodiumWal-5
(Wall-Mounted Sodium-ion Battery)
48V 160Ah (7.68kWh) wall-mounted sodium-ion battery specified for residential energy-storage applications. The product brochure lists sodium-ion chemistry, a BMS and project-dependent communication integration.
CF-SodiumWal-5 is a 48V, 160Ah (7.68kWh) sodium-ion battery for residential energy-storage applications. The brochure lists wall-mounted and floor-standing installation options.
- 7.68kWh nominal energy per unit.

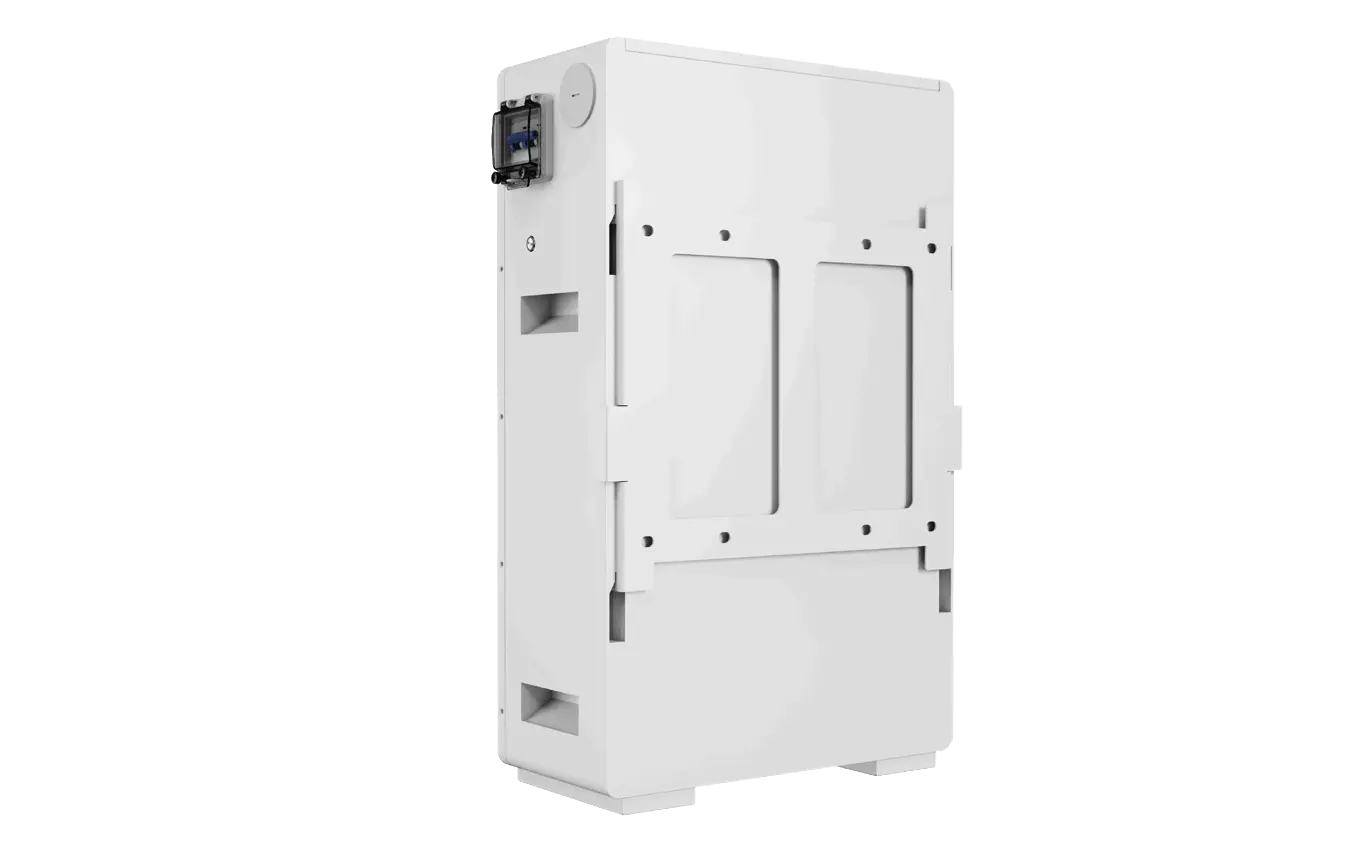

- Wall-mounted or floor-standing installation options listed.
- System configuration should be reviewed for the intended project.
The product brochure specifies 9,000 cycles at 80% DOD and 25°C. Actual service life depends on operating conditions and system design.
- Maximum discharge current: 200A.
- Extendibility: up to 20 groups.
- Specified operating conditions are detailed in the product brochure.
The brochure lists an intelligent BMS that monitors battery operating conditions.
- An aerosol fire-extinguishing device with Bluetooth is listed in the product brochure.
- An IP65 rating is listed; final installation suitability should be confirmed for the project site.
- RS232, CAN and RS485 interfaces are listed; compatibility with a specific inverter or controller should be confirmed for the project.
| Battery Chemistry | Sodium-ion |
| Nominal Voltage | 48V |
| Nominal Capacity | 160Ah |
| Nominal Energy | 7.68kWh |
| Cycle Life | 9,000 cycles @ 80% DOD, 25°C |
| Dimensions (H × W × D) | 800 × 500 × 227 mm |
| Weight | 112.5 kg |
| Protection Rating | IP65 |
| Communication | RS232 / CAN / RS485 |
| Parallel Capacity | Up to 20 groups |
