CF-PrimeWall 15
(16.076kWh Residential LFP Battery)
CF-PrimeWall 15 is a residential energy storage battery with a nominal 51.2 V, 314 Ah and 16.076 kWh configuration. The datasheet lists 8,000 cycles at 80% DOD and an integrated hot aerosol fire-extinguishing device; confirm system design and documentation for the intended project.
CF-PrimeWall 15 is a residential battery for Home Energy Storage, using A+ grade lithium iron phosphate (LFP) cells. Its single-unit nominal configuration is 51.2 V, 314 Ah and 16.076 kWh. Project suitability depends on the intended loads and system design.
- Datasheet-listed cycle life: 8,000 cycles at 80% DOD; maximum DOD: 95%.
- Communication options include CAN, RS485, RS232 and Bluetooth/BLE.
- IP65 enclosure; the datasheet lists installation indoors or under outdoor eaves.
The datasheet lists support for up to 20 units in parallel and a maximum parallel-system nominal energy of 321.52 kWh. Confirm the final system configuration and compatibility for the project. Review project-specific integration options through our OEM/ODM services.
- Recommended charge/discharge current: 140 A; maximum continuous charge/discharge current: 200 A.
- Short-duration current: 250 A for 10 seconds.
- Conversion efficiency: 99% at 25°C / 0.5C; communication options include CAN, RS485, RS232 and Bluetooth/BLE.
The datasheet lists an IP65 enclosure and installation indoors or under outdoor eaves. It also specifies natural convection cooling and a hot aerosol fire-extinguishing device at single-pack level.
- Charge temperature: -20–55°C with the heating function; 0–55°C without heating.
- Discharge temperature: -20–60°C. Storage: 20–45°C for up to 3 months; 25±3°C for periods over 3 months.

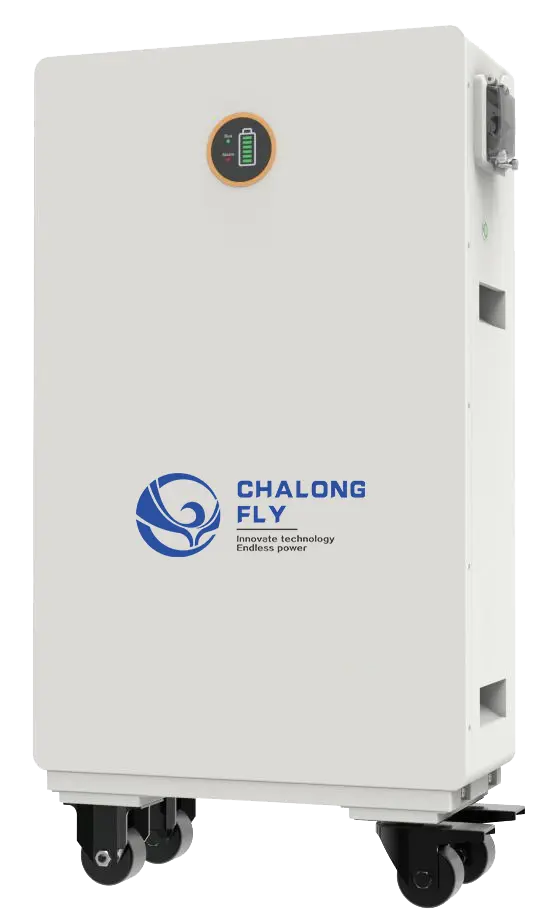

- Maximum altitude: 3,000 m. Optional wheels are available; confirm installation and operating conditions for the intended project.
| Battery chemistry | Lithium iron phosphate (LFP), A+ grade |
| Nominal voltage | 51.2 V |
| Nominal capacity | 314 Ah |
| Nominal energy | 16.076 kWh |
| Operating voltage | 44.8–57.6 V |
| Cycle life / maximum DOD | 8,000 cycles at 80% DOD; maximum DOD 95% |
| Recommended charge/discharge current | 140 A |
| Maximum continuous charge/discharge current | 200 A |
| Short-duration current | 250 A for 10 seconds |
| Conversion efficiency | 99% at 25°C / 0.5C |
| Communication | CAN / RS485 / RS232 / Bluetooth (BLE) |
| Parallel connection | Up to 20 units |
| Maximum parallel-system nominal energy | 321.52 kWh (datasheet-listed) |
| Dimensions (L × W × D) | 800 × 500 × 227 mm |
| Weight | 149 kg |
| Ingress protection | IP65 |
| Cooling | Natural convection |
| Installation | Wall-mounted or floor-standing; indoors or under outdoor eaves |
| Charge temperature | -20–55°C with heating; 0–55°C without heating |
| Discharge temperature | -20–60°C |
| Storage temperature | 20–45°C up to 3 months; 25±3°C for over 3 months |
| Maximum altitude | 3,000 m |
| Expansion features | Heating function and optional wheels (confirm ordered configuration) |
| Datasheet-listed documentation / certification | UN38.3, MSDS, TCAR, CB and CEI 0-21 are listed in the current datasheet. Confirm availability and applicability for the intended configuration and destination market. |
