CF-HomeWall-5.12
(Wall-Mounted LFP Battery)

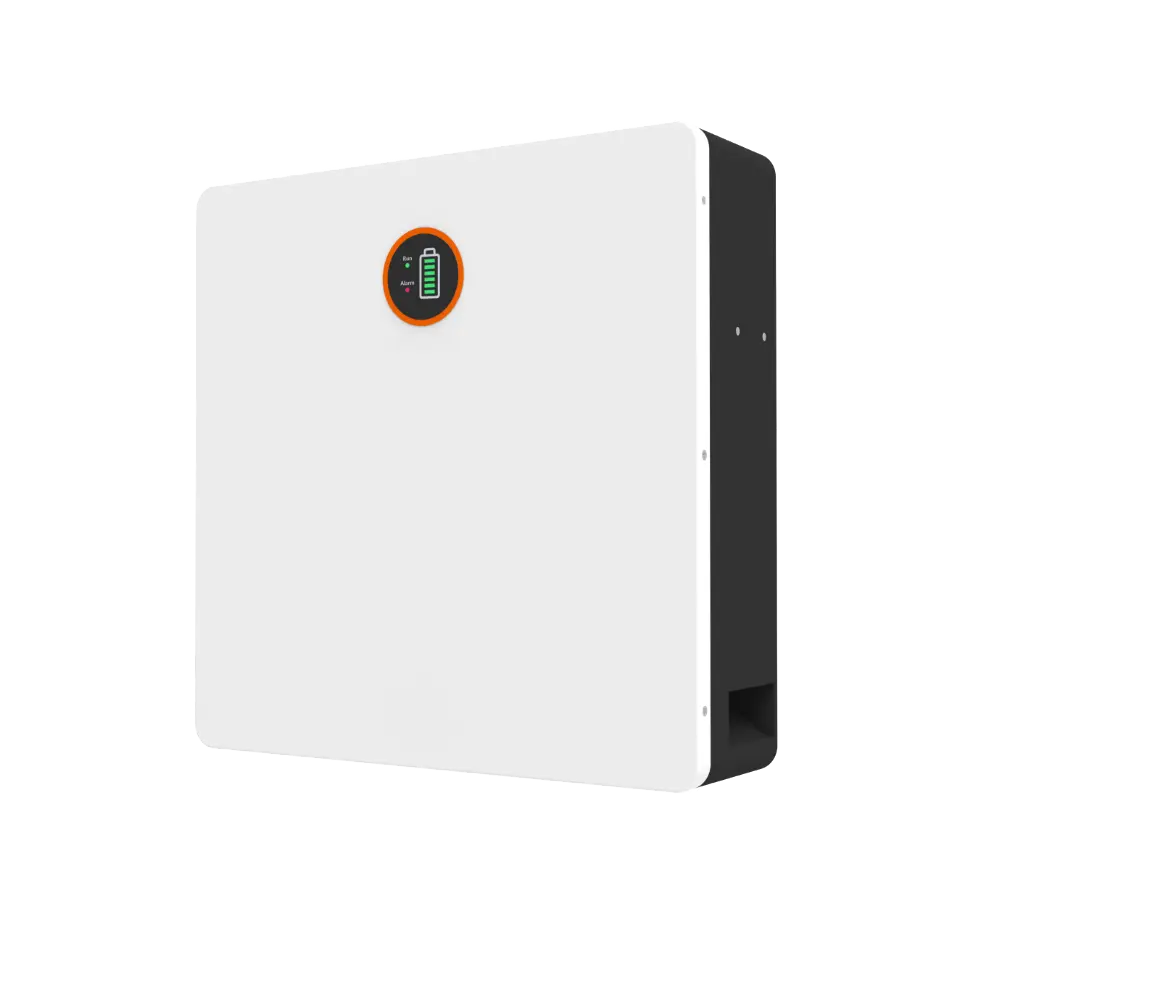

The CF-HomeWall-5.12 is an indoor wall-mounted LiFePO4 battery for residential energy storage. Each unit is rated at 51.2 V, 100 Ah and 5.12 kWh nominal energy; confirm system suitability against the complete design and installation environment.
5.12 kWh Nominal EnergyPer battery unit
51.2 V / 100 AhNominal voltage / rated capacity
Up to 15 Units in ParallelConfirm the system configuration for the project
IP20Indoor wall-mounted installation specified
Product Overview
Design & Performance
Safety & Applications
Technical Specifications
CF-HomeWall-5.12 is a 51.2 V, 100 Ah LiFePO4 battery with 5.12 kWh nominal energy for residential energy storage. See the Home Energy Storage overview for system context.
- The datasheet lists a maximum of 15 units in parallel; confirm the permitted configuration and system design for the project.
- The listed LED display shows state of charge (SOC) and battery status.
- The datasheet specifies indoor wall-mounted installation.
The datasheet lists natural-convection cooling for this wall-mounted battery.
- Recommended charge current: 50 A; recommended discharge current: 50 A.
- Maximum continuous charge current: 100 A; maximum continuous discharge current: 100 A.
- Instantaneous discharge current: 200 A for 3 seconds.
For project-specific manufacturing discussions, see our OEM/ODM services.
The datasheet specifies IP20 and indoor wall-mounted installation. Check that the installation site meets the intended application requirements.
- Charge temperature: 0–55 °C.
- Discharge temperature: −20–60 °C.
- Storage temperature, humidity and state-of-charge guidance are listed in the technical table.
| Battery Chemistry | LiFePO4 (LFP) |
| Nominal Voltage | 51.2 V |
| Rated Capacity | 100 Ah |
| Nominal Energy | 5.12 kWh |
| Charge Cutoff Voltage | 56.16 V |
| Discharge Cutoff Voltage | 45.6 V |
| Recommended Charge Current | 50 A |
| Recommended Discharge Current | 50 A |
| Maximum Continuous Charge Current | 100 A |
| Maximum Continuous Discharge Current | 100 A |
| Instantaneous Discharge Current | 200 A for 3 s |
| Maximum Parallel Quantity | 15 units; confirm system configuration |
| Charge Temperature | 0–55 °C |
| Discharge Temperature | −20–60 °C |
| Storage Temperature (up to 3 months) | 20–45 °C |
| Storage Temperature (over 3 months) | 25 ± 3 °C |
| Storage Relative Humidity | 65 ± 20% RH |
| Storage State of Charge | 50% SOC |

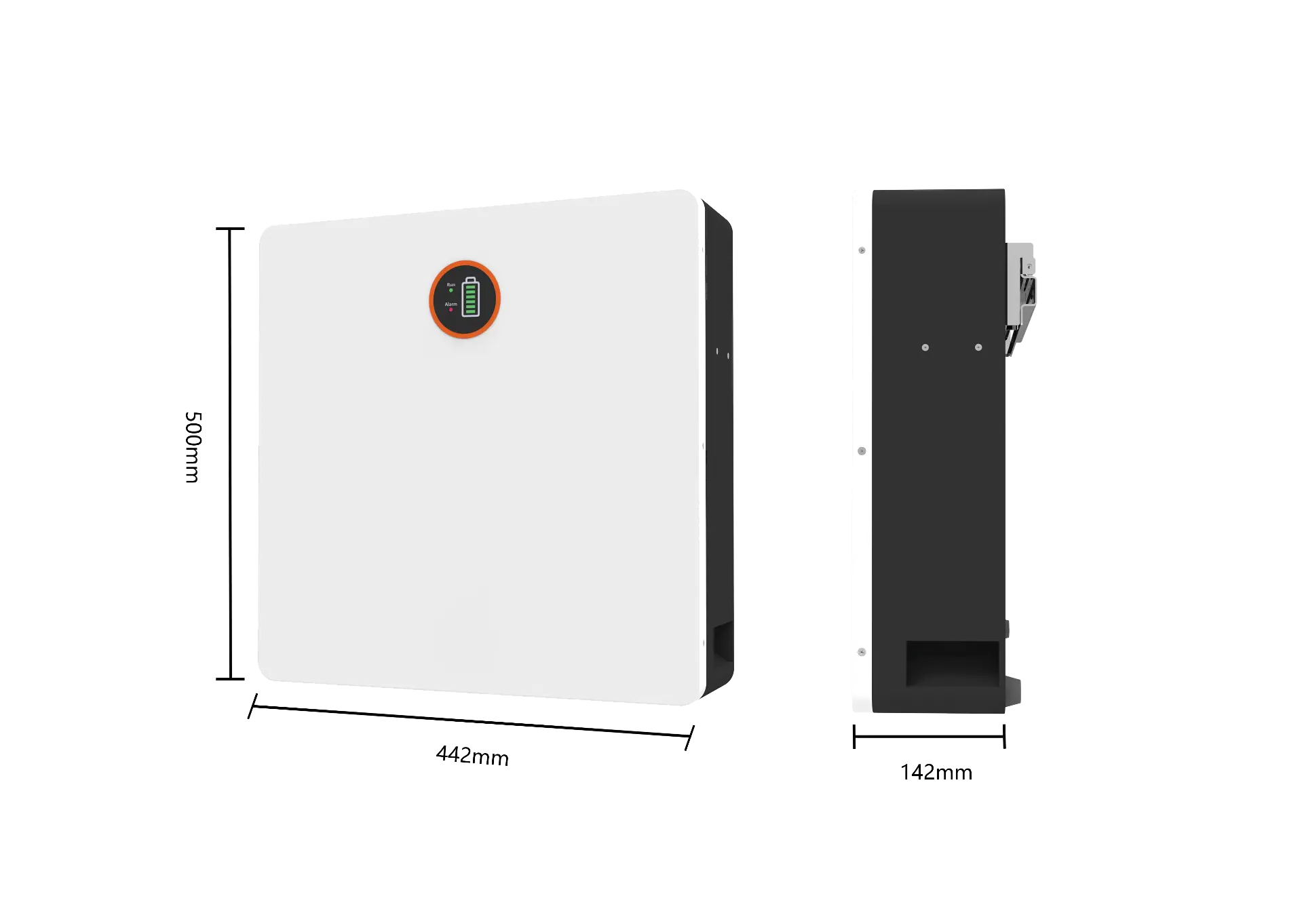

| Dimensions (W × H × D) | 442 × 500 × 142 mm |
| Weight | 41.88 kg |

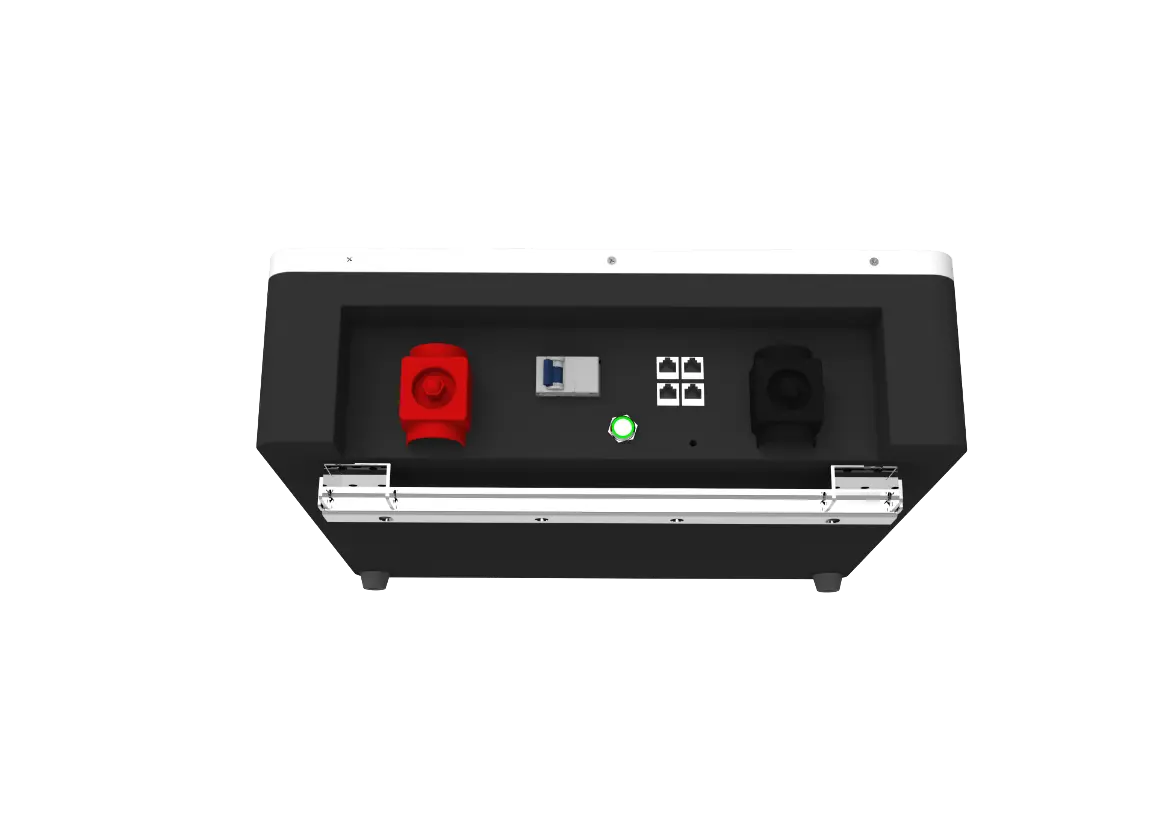

| Communication | RS232 / CAN / RS485 |
| Ingress Protection | IP20 |
| Cooling | Natural convection |
| Installation | Indoor, wall-mounted |
| Display | LED state of charge (SOC) and battery status |
Frequently Asked Questions
What is CF-HomeWall-5.12 designed for?
It is an indoor wall-mounted LiFePO4 battery with 51.2 V nominal voltage, 100 Ah rated capacity and 5.12 kWh nominal energy for residential energy storage. Whether it suits a solar or backup application depends on the complete system design and load requirements.
How many CF-HomeWall-5.12 units can be connected in parallel?
The datasheet lists a maximum of 15 units in parallel. At 15 units, 15 × 5.12 kWh equals 76.8 kWh of calculated nominal aggregate energy; confirm the permitted configuration and system design for the project.
Which inverter communication options are listed?
The datasheet lists RS232, CAN and RS485 communication. Compatibility with a specific inverter model and protocol should be confirmed for the intended configuration.
What are the recommended, continuous and peak current values?
The datasheet lists 50 A recommended charge and discharge current, up to 100 A maximum continuous charge and discharge current, and 200 A instantaneous discharge for 3 seconds. Confirm limits against the intended system configuration.
What installation environment and temperature limits are listed?
The datasheet specifies IP20 and indoor wall-mounted installation with natural-convection cooling. It lists a charge-temperature range of 0–55 °C and a discharge-temperature range of −20–60 °C. Check site suitability for the installation.
What does the datasheet state about cycle life and certifications?
The current datasheet describes long cycle life qualitatively but does not provide a numeric cycle-life figure or list specific product certifications. Required documentation and compliance requirements should be confirmed for the intended configuration and destination market.
