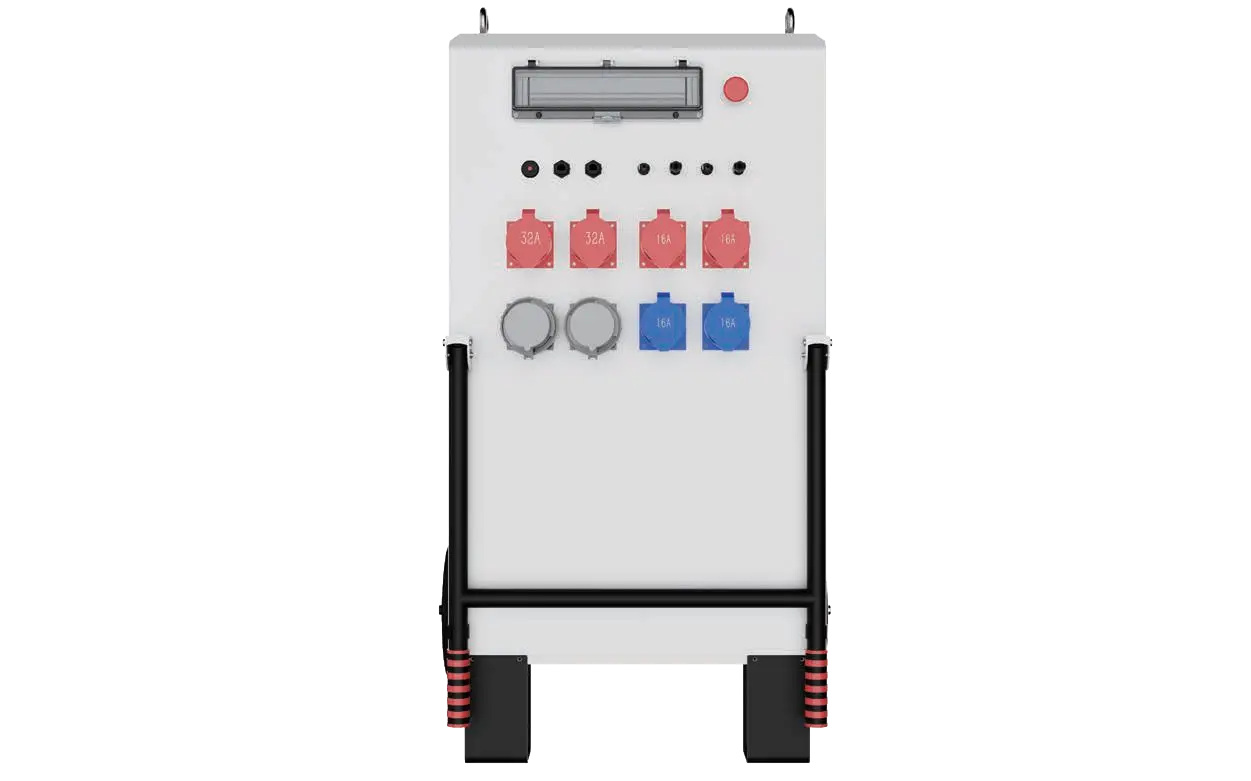

CF PowerCab 50 Indoor
(12 kW / 15 kWh Mobile ESS)
CF PowerCab 50 Indoor is a 12 kW rated-power, 15 kWh nominal-energy mobile LiFePO4 storage system for backup and off-grid scenarios. Its wheeled, plug-and-play design is specified for use without complicated installation; confirm the intended configuration and site conditions for each project.
CF PowerCab 50 Indoor combines LiFePO4 battery storage with a three-phase 12 kW hybrid inverter in a wheeled mobile system rated at 15 kWh nominal energy. Review the broader C&I Energy Storage options and OEM/ODM project support when defining a project scope.
- Datasheet-listed scenarios include villa, construction-site, farm, plant and base-station applications, along with home backup, EV-charging expansion and off-grid use.
- Grid, PV and diesel-generator scenarios are listed; CAN / RS485 communication is specified.
- Wheeled, plug-and-play design; the datasheet states that complicated installation is not required.
The system uses A+ grade LiFePO4 cells with a multi-level battery management system (BMS). Cycle-life information is stated with defined test conditions in the product datasheet.
- Rated power: 12 kW; nominal energy: 15 kWh.
- Off-grid peak output: 2 × rated power for 10 seconds as specified for the inverter; confirm load and operating conditions for the intended project.
- Noise level listed in the datasheet: below 40 dB.
- Maximum inverter efficiency: 97.60%.
Datasheet-listed product documentation includes UN38.3 and MSDS. Confirm document availability and applicability for the ordered configuration and destination market.
Applications and integration scenarios should be reviewed against the intended project, site conditions and selected configuration.
- Listed scenarios include grid, PV and diesel-generator integration, plus home backup, EV-charging expansion and off-grid use.
- System communication: CAN / RS485.
- Complete system enclosure rating: IP20; inverter component rating: IP65. The inverter rating does not describe the complete system.
- System cooling: natural cooling.
System specifications
| Rated power | 12 kW |
| Nominal energy | 15 kWh |
| Nominal voltage | 51.2 V |
| Operating voltage | 44.8–58.4 V |
| Cell specification | 3.2 V / 100 Ah |
| String configuration | 3P16S |
| Battery pack energy | 5 kWh |
| Battery chemistry | LiFePO4 |
| Cycle life | ≥ 6,000 cycles @ 25°C, 0.5P/0.5P |
| Communication | CAN / RS485 |
| System enclosure rating | IP20 |
| Cooling | Natural cooling |
| Dimensions (W × D × H) | 600 × 1030 × 1223 mm |
| Weight | Approx. 282.5 kg |
| Charging temperature | 0–55°C |
| Discharging temperature | −20–60°C |
| Storage temperature | −10–45°C |
| Relative humidity | 15–90%, non-condensing |
| Operating altitude | ≤ 3000 m |
Inverter specifications
| Model | SUN-12K-SG04LP3-EU |
| Phase configuration | Three-phase |
| Off-grid peak output | 2 × rated power for 10 seconds |
| Maximum efficiency | 97.60% |
| Euro efficiency | 97.00% |
| MPPT efficiency | 99.90% |
| Inverter component rating | IP65 (inverter only; system enclosure is IP20) |
