25.6V 6Ah LiFePO4 UPS Battery
(1kVA Backup Module)

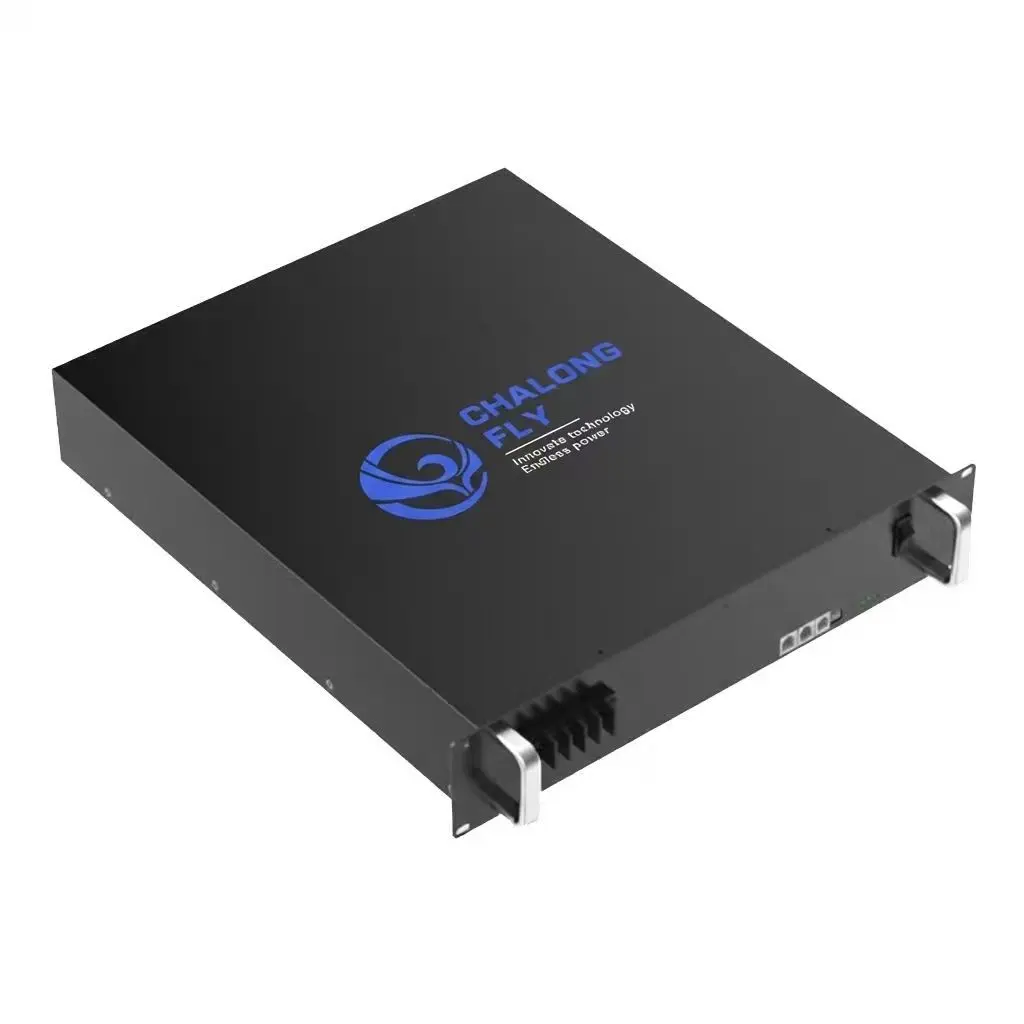

25.6V 6Ah LiFePO4 UPS battery module with a listed 7.5C (45A) discharge rating and a rack-oriented 1U form factor. For a 1kVA-class UPS, confirm the voltage window, charging profile, required battery current, connector, available dimensions and BMS interface before selection.
Built-in Battery (Short Backup Power)
The CLF Standard Voltage Series UPS Battery Pack is configured for high-rate UPS equipment. Confirm voltage, current, charging, connector, dimensions and BMS compatibility for the target UPS model.
- LiFePO4 cells: Delivered with high stability and safety.
- Communication: Equipped with RS232, RS485 communication interfaces.
- Intelligent BMS: Overcharge, over-discharge, over-temperature, over-current, and short-circuit protection.
- High-rate discharge: Supports ultra-high-rate discharge up to 7.5C.
- Float / standby service: Designed for long-term float/standby UPS service; actual service life depends on temperature, state of charge, charging profile and duty cycle.
Designed for UPS backup applications in data centers, enterprise IT rooms, banking facilities, medical equipment, security systems, precision instruments, and commercial office environments.

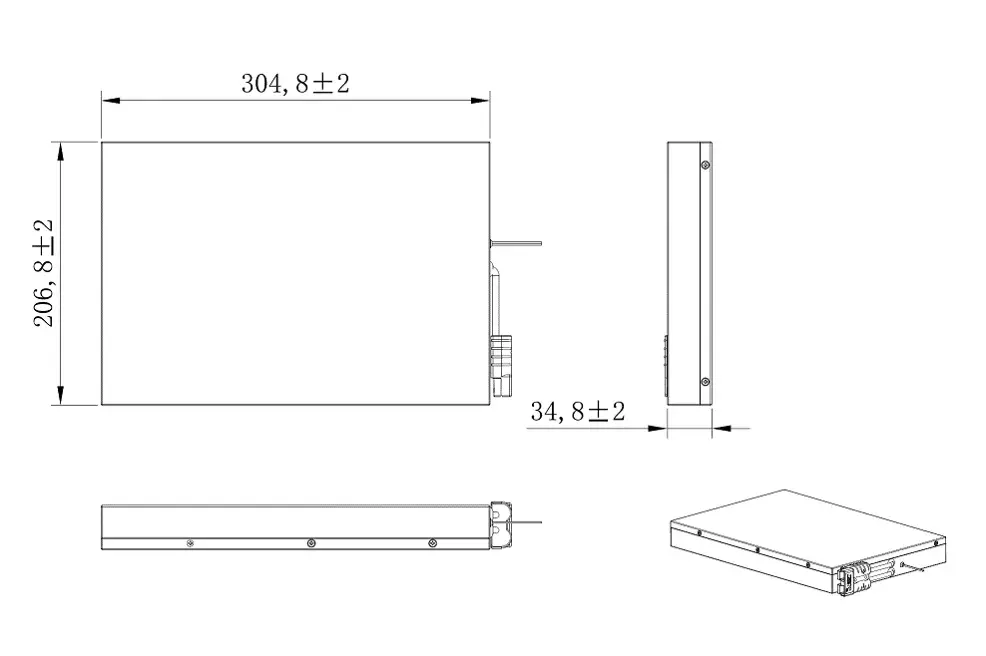

Precision Engineering Dimensions: 304.8±2mm × 206.8±2mm × 34.8±2mm.
| Electrical Specifications | |
|---|---|
| Nominal Voltage | 25.6V |
| Nominal Capacity | 6Ah |
| Power | 153.6Wh |
| Internal Resistance | ≤ 41 mΩ |
| UPS System Class | Up to 1kVA; confirm voltage, charging, current and interface fit. |
| Discharge Specifications | |
|---|---|
| Typical Backup Time | 8–15 minutes, depending on UPS load and operating conditions. |
| Max. Cont. Discharge | 45A |
| Voltage Protection | BMS overcharge / over-discharge protection; thresholds confirmed per project configuration. |
| Short Circuit Protection | Yes |
| Mechanical Specifications | |
|---|---|
| Cell Specification | IFR26650-3000mAh |
| Battery Series | 8S2P |
| Dimensions (L×W×H) | 305 × 207 × 35 mm |
| Weight | 3.4 kg |
| Output Terminal | Anderson SB50 |
| Temperature Specifications | |
|---|---|
| Discharge Temp | -20 to 60°C |
| Charge Temp | 0 to 45°C |
| BMS Over-temp Protection | 65 ± 5°C |
UPS battery selection & project planning
25.6V 6Ah LiFePO4 UPS battery for 1kVA-class systems
The 25.6V, 6Ah listing provides 153.6Wh, an 8S2P cell configuration and a 45A maximum continuous discharge specification for a UPS class up to 1kVA. Its 305 × 207 × 35 mm envelope and Anderson SB50 terminal are central to replacement fit; the kVA label alone does not establish compatibility.
UPS compatibility and replacement checks
How to interpret this configuration
The 7.5C / 45A listing is relevant when checking the battery-side current demand of a 1kVA-class UPS. Confirm the target system’s DC voltage window and LiFePO4 charge profile, then compare current demand, cutoff behavior and interface requirements with the published configuration.
Typical system context: This 25.6V format is distinct from the 12.8V and 38.4V pages in the same range. It is relevant to 24V-class UPS designs that specify a compatible 25.6V lithium pack, including compact network, office-IT and control equipment; verify the charging window and connector instead of substituting by nominal voltage alone.
Interface and installation details to confirm
- Cell configuration listed: 8S2P; dimensions: 305 × 207 × 35 mm; weight: 3.4 kg.
- Output terminal: Anderson SB50; communication interfaces listed: RS232 and RS485.
- The page lists an 8–15 minute runtime reference and 45A maximum continuous discharge. Confirm any separate peak-current requirement with the quoted configuration.
LiFePO4 retrofit checklist
- Confirm the UPS DC bus and lithium charging profile against the 25.6V pack.
- Check continuous current against the listed 45A limit and identify any pulse demand.
- Verify SB50 connector polarity, cable gauge, mounting clearance and 305 × 207 × 35 mm fit.
- Confirm communication protocol and BMS behavior with the target UPS controller.
Runtime planning and OEM/ODM project intake
Plan from the actual UPS load
Use 8–15 minutes only as the listing’s runtime reference. The actual hold-up time depends on the connected load, UPS efficiency, battery cutoff, state of charge, temperature, age and configuration. Share the UPS model, measured load, DC bus, cutoff setting and required runtime for a system-specific review.
What to include in a quotation request
Include UPS make/model, 25.6V DC bus and charger limits, load and required runtime, SB50 polarity/cable, installation dimensions, communication needs and quantity.
OEM/ODM discussions can cover BMS configuration, RS232/RS485 interface requirements, Anderson SB50 or an agreed connector, cable routing, mounting and label details. Provide the UPS model and required quantity so the configuration is assessed for the actual system rather than inferred from its 1kVA class.
Discuss this UPS configurationCompare related UPS configurations: Compare the 12.8V 6Ah compact 0.5kVA option · Compare the 38.4V 5Ah 2kVA option · View the UPS battery range
